Showcase Home » Kubota » M5640SU 2WD/4WD
Model Quick Search

$17,995.00

2009 Kubota M5640SU 2WD/4WD

M5640SU Sale

Now until September 30, 2010
Request a Quote Financing Calculator Request a Brochure Financing Form

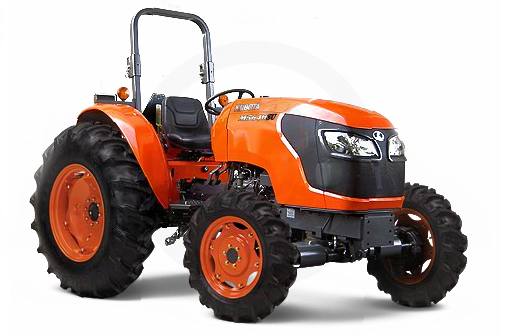

Click here to view full image.
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

    Engine
    • Make: Kubota
    • Type: E-TVCS, indirect injection, liquid cooled diesel
    • No. of cylinders/Aspiration: 4/Turbocharged
    • Engine net power: 56 hp (41.7 kW) @ 2700 rpm
    • PTO Power: 50 hp (37.3 kW) @ 2700 rpm
    • Total displacement: 148.5 cu. in. (2434 cc)
    • Fuel tank capacity: 13.1 gal. (50 l)
    • Air Cleaner: Dry, Dual-element
    • Alternator: 40 AMP
    Transmission
    • No of speeds: 8F/4R
    • Main gear shift (4 speeds): Partially synchronized (3rd & 4th)
    • Synchro-shuttle: Between forward (low) & reverse range
    • Main clutch type: Dry single plate
    • Brake type: Mechanincal multi-plate wet disc
    • Mechanical differential lock: Rear standard
    • Final drive: Inboard Planetary
    PTO
    • PTO type: Live-independent, hydraulic PTO with PTO brake, multi-plate wet clutch
    • Speed: 540 rpm
    Hydraulics
    • Pump capacity (3-point hitch): 11 gpm (41.6 l/min)
    • 3-point hitch: Telescopic stabilizers, turn-buckle-type lift rod
    • Category: I/II
    • Control system: Position
    • Lift capacity at 24 in. behind lift point: 3310 lbs. (1500 kg)
    • No. of remote valves: Optional (Max. 3)
    Other Features
    • Steering: Hydrostatic power steering
    • Hood type/pedal type: Full-open hood/Hanging pedals
    • Deck type: Semi-flat (ISO-mounted)
    • Standard Front Tire: 6.50-16F2
    • Standard Rear Tire: 14.9-28R1
    Dimensions & Weight
    • Overall Length: 136.0 in. (3455 mm)
    • Overall height (top of ROPS): 92.9 in. (2360 mm)
    • Overall width (Minimum): 67.3 in. (1710 mm)
    • Wheelbase: 78.7 in. (2000 mm)
    • Crop Clearance (Front Axle): 17.9 in. (455 mm)
    • Tread Width, Front: 55.9-59.8 in. (1420-1520 mm)
    • Tread Width, Rear: 51.9-67.7 in. (1320-1720 mm)
    • Turning Radius (w/o Brake): 11.2 ft. (3.4 mm)
    • Tractor Weight: 3747 lbs. (1700 kg)

    Specifications

    Engine
    Engine Manufacturer Kubota
    Engine Type Type: E-TVCS, indirect injection, liquid cooled diesel; No. of cylinders/Aspiration: 4/Turbocharged; Total displacement: 148.5 cu. in. (2434 cc)
    Horsepower 56 hp (41.7 kW) @ 2700 rpm
    PTO HP 50 hp (37.3 kW) @ 2700 rpm
    Rated RPM 2700 rpm
    Specifications
    Wheelbase 78.7 in. (2000 mm)
    Height 92.9 in. (2360 mm)
    Width 67.3 in. (1710 mm), Minimum
    Weight 3747 lbs. (1700 kg)
    Ground Clearance 17.9 in. (455 mm)
    Tire Size Standard Front Tire: 6.50-16F2; Standard Rear Tire: 14.9-28R1
    General
    Fuel System Indirect injection
    Fuel Capacity 13.1 gal. (50 l)
    Transmission No of speeds: 8F/4R; Main gear shift (4 speeds): Partially synchronized (3rd & 4th)
    Brakes Mechanincal multi-plate wet disc
    Hydraulics Pump capacity (3-point hitch): 11 gpm (41.6 l/min); 3-point hitch: Telescopic stabilizers, turn-buckle-type lift rod
    Drive Type Inboard Planetary

    Compare Models

    		 Print








    Year 2009
    Manufacturer Kubota
    Model M5640SU 2WD/4WD
    Style Utility
    Engine
    Engine Manufacturer Kubota
    Engine Type Type: E-TVCS, indirect injection, liquid cooled diesel; No. of cylinders/Aspiration: 4/Turbocharged; Total displacement: 148.5 cu. in. (2434 cc)
    Horsepower 56 hp (41.7 kW) @ 2700 rpm
    PTO HP 50 hp (37.3 kW) @ 2700 rpm
    Rated RPM 2700 rpm
    Bore and Stroke
    General
    Fuel System Indirect injection
    Fuel Capacity 13.1 gal. (50 l)
    Transmission No of speeds: 8F/4R; Main gear shift (4 speeds): Partially synchronized (3rd & 4th)
    Brakes Mechanincal multi-plate wet disc
    Hydraulics Pump capacity (3-point hitch): 11 gpm (41.6 l/min); 3-point hitch: Telescopic stabilizers, turn-buckle-type lift rod
    Drive Type Inboard Planetary
    Specifications
    Wheelbase 78.7 in. (2000 mm)
    Height 92.9 in. (2360 mm)
    Width 67.3 in. (1710 mm), Minimum
    Weight 3747 lbs. (1700 kg)
    Ground Clearance 17.9 in. (455 mm)
    Tire Size Standard Front Tire: 6.50-16F2; Standard Rear Tire: 14.9-28R1

    Current Promotions

    There are currently no promotions available for this product.
