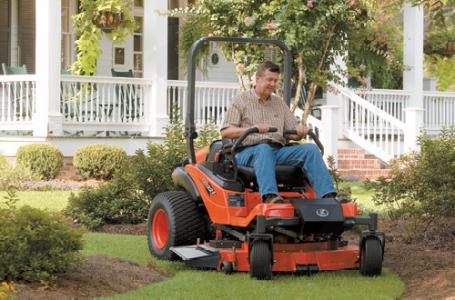

2010 Kubota ZD221-48/54 Zero-Turn Mower


Request a Quote Financing Calculator Request a Brochure Financing Form

Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

Print Brochure

For maneuverability, nothing beats our lineup of zero-turn mowers. Designed to stand up to the rigors of daily use, they combine a high-output diesel engine with a host of innovative features enabling you to handle anything that crosses your path.


Kubota Diesel Engine:
Kubota diesel engines are known for their durability, high performance, energy efficiency and reliability. Their fuel efficiency, high torque, quiet operation and reduced emissions help you take on heavy mowing jobs for extended periods. Our 21 horsepower engine will exceed the high expectations of the commercial landscaper.


Pro Commercial Mower Deck:
The ZD221 models feature heavy-duty 48 in./54 in. Pro Commercial mower docks designed to maximize cutting performance. The 6 in.-deep, double-belt decks feature a unique baffling system that improves airflow to discharge grass clippings, and an anti-overflow system that reduces grass spillage and helps give lawns that well- manicured look.


Optional Mulching System:
These Pro Commercial mower decks are perfect for mulching, even on thick grass. Kubota's unique flow plate design optimizes airflow to allow repeated cutting, and the special mulching blades provide an extra-fine cut to leave a beautiful finish.


Hydraulic Deck Lift:
Elevate the mower deck and roll right over obstacles. The ZD221 models include a hydraulic lift system that raises and lowers the deck with the simple push of a pedal. And, if necessary, a special one-touch lock allows you to keep the deck in place.


Operator Deck:
Work in style and comfort. The spacious operator deck has an uncluttered floorboard to give you ample legroom.


Comfortable Seat:
To make mowing tasks more comfortable, we've included a cushioned seat with sturdy, padded armrests. The adjustable seat also features an attached seatbelt for your protection.


Instrument Panel:
With the user-friendly instrument panel, Kubota keeps essential controls and indicators close for easy access and viewing. They're all here-warning indicator, fuel gauge and more.


Easy Maintenance:
Maintenance doesn't get any easier. The seat panel lifts up for quick access to the HST, the hood opens for routine maintenance (adding oil, etc.), an operator platform hatch makes upper mower access a snap-and all three can be opened at once. Plus, Kubota's optional tilt-up lift feature is also available for routine maintenance underneath the mower.


Underside Maintenance:
For easy access to the upper mower, mower belts and universal joint parts, the ZD221 models feature a convenient maintenance hatch built into the operator's platform.


Optional Maintenance Lift:
Kubota's innovative lift feature allows the front of the ZD models to be easily raised without having to remove the mid-mount mower, making routine maintenance underneath the mower quick and simple. It's a built in jack right there when you need it.


Flexible Cover:
The ZD221 models employ a flexible-yet-sturdy discharge cover to help prevent damage to shrubs and landscaping.

    Engine
    • Engine Model: Kubota D782
    • Engine Type: 3 cylinder liquid-cooled Diesel
    • Horsepower(Gross): 21hp @ 3200 rpm
    • Displacement: 47.5 ci. (778 cc)
    • Starling system: Key switch; Super glow
    • Engine stop system: Key stop
    • Fuel tank capacity: 6.1 gal. (23 l)
    • Battery: 12 Volts; 51R, 450CCA @ 0°F; 70 min. RC.
    • Alternator Capacity: 14 Amps at 14 Volts
    • Water temperature indicator: Standard
    • Hour meter: Standard
    • Fuel gauge: Electric
    Other Optional Implements
    • Mulching System
    • "Catch All" Grass Catcher
    • Work Lights
    • Maintenance Lift
    • Deluxe Canopy
    Dimensions & Weight
    • Overall length: 83.9 in. (2130 mm)
    • Overall width (w/mower): 61.1 in. (1552 mm)/67.3 in. (1710)
    • Overall width (w/o mower): 47.7 in.(1210 mm)
    • Overall height (w/ROPS upright):69.9 in. (1775 mm)
    • Overall height (w/ROPS folded): 51.9 in (1320 mm)
    • Wheelbase: 51.0 in. (1295 mm)
    • Tread (Front/Rear): 33.9 in. (860 mm)/38.6 in. (930 mm)
    • Weight (w/mower; w/o fuel): 1202 lbs. (545 kg)/1224 lbs. (555 kg)
    Drive Train and Transmission
    • Transmission system 2-HST w/Gear reduction
    • Speed control: 2-hand lever
    • Travel speed range (Forward): 0-9.0 mph (0-14.5 km/h)
    • Travel speed range (Reverse): 0-5.0 mph (0-8.0 km/h)
    • Break type: Wet multi disks; Foot operated
    • PTO type: Shaft drive
    • Clutch type: Hydraulic independent; PTO clutch with wet multi disks
    • PTO brake: Wet single disk
    Tire Size
    • Tire size (Front): 13x5.0-6 Pneumatic
    • Tire size (Rear): 23x10.5-12
    Mower Specifications
    • Mower deck model: RCK48P-222Z/RCK54P-227Z
    • Mower lift system: Hydraulic
    • Mower deck type: Pro commercial; Fabricated deck
    • Deck depth: 6.0 in. (152 mm)
    • Belt type: Multi-Belt
    • Deck steel thickness: 0.18 in. (4.6 mm); 0.17 in.(4.2 mm)
    • Anli-scalp roller: Rigid
    • Cutting width of mower: 48 in./54 in.
    • Number of blades: 3 blades
    • Cutting height 1 in. to 5 in. in 1/4 in. increments
    • Mounting system of mower: Parallel linkage
    • Blade tip speed (max.): 17000 RPM

    Specifications

    Engine
    Engine Manufacturer Kubota D782
    Horse Power 21hp @ 3200 rpm
    Engine Type 3 cylinder liquid-cooled Diesel
    Displacement 47.5 ci. (778 cc)
    General
    Transmission 2-HST w/Gear reduction
    Wheel Size Front: 13x5.0-6 Pneumatic; Rear: 23x10.5-12
    Fuel Capacity 6.1 gal. (23 l)
    Deck
    Deck Size 48 in. or 54 in.
    Discharge Type Right Side

    Compare Models

    Print








    Year 2010
    Manufacturer Kubota
    Model ZD221-48/54 Zero-Turn Mower
    Style Riding
    Deck
    Deck Size 48 in. or 54 in.
    Discharge Type Right Side
    Engine
    Engine Manufacturer Kubota D782
    Horse Power 21hp @ 3200 rpm
    Engine Type 3 cylinder liquid-cooled Diesel
    Displacement 47.5 ci. (778 cc)
    General
    Transmission 2-HST w/Gear reduction
    Wheel Size Front: 13x5.0-6 Pneumatic; Rear: 23x10.5-12
    Fuel Capacity 6.1 gal. (23 l)
