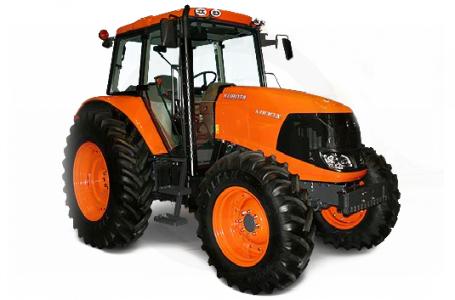

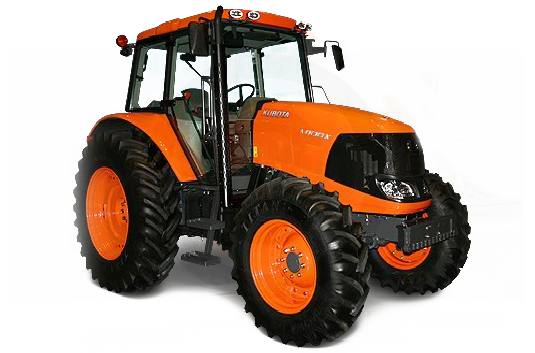

2010 Kubota M100X Mid-Size Utility Tractor
Request a Quote Financing Calculator Request a Brochure Financing Form
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

    Engine
    • Make: Kubota
    • Engine: V3800-TI-CRS
    • Type: Common Rail System, direct injection, liquid-cooled
    • No. of cylinders/Aspiration: 4/ Turbocharger with intercooler
    • SAE net Power: 97.7 hp (72.9 kW)
    • PTO power: 85.0 hp (63.4 kW)
    • Total displacement: 230 cu. in. (3769 cc)
    • Boxe X Stroke: 3.94 in. x 4.72 in. (100 mm x 120 mm)
    • Rated Speed: 2600 rpm
    • Fuel tank capacity: 50.2 gal. (190 l)
    • Alterator: 80 Amp/12V
    • Battery: 100Ah at 20 hours, 900 CCA
    • Air cleaner: 8 in. Dry, dual element
    • Muffler: Under-hood, corner-post exhaust pipe
    Transmission
    • No. of Speeds: Intelli-Shift transmission 16F/16R, Optional: 24F/24R w/creep
    • Main gear shift: 8-speed powershift
    • Range gear shift: 2-Speed mechanical shift with clutch button
    • Shuttle shift: Microprocessor-controlled electro-hydraulic shuttle
    • Bi-speed turn: Standard
    • Creep Speed (cassette type): Optional (.22 - 1.0 mph)
    • Max Traveling Speed: 20.9 mph (33.6 km/h) @ Max engine rpm
    • Main Clutch type: Multiple wet disc, electro-hydraulically operated
    • Main clutch diameter: 5.2 in. (133mm) x 7 discs
    • Brake type: Hydraulically operated wet disc brakes, with automatic fron axle engagement (4WD)
    • Front wheel drive system: Bevel gear type, on-the-go electro-hydraulic engagement, w/electro-hydraulic front differential lock
    PTO
    • PTO Type: Live-independent PTO, hydraulically operated wet clutch, w/PTO brake
    • PTO Speed (interchangeable): 540 rpm (6 splines) 1000 rpm (21 Splines) (two shafts)
    Hydraulics
    • Pump output (hitch & remote): 18.1 gpm (68.4 l/min)
    • Pump output (power steering): 17.2 gpm (65.1 l/min)
    • 3-Point Hitch (Category II): Telescopic Lower link ends, telescopic stabilizers
    • Control system: Electronic draft control, lower link sensing, left fender-mounted hitch switch standard
    • Lift capacity at 24 in. behind lift point: 5230 lbs. (2360 kg), 9447 lbs. (4285 kg) w/2 assist cylinders
    • Steering: Hydrostatic power steering
    Cab
    • Operator area: ISO-mounted flat deck, hanging pedals, tilt steering wheel
    • Seat (air ride): Swivel, reclingin, full adjustment (heigh, weight, for & aft.) arm rests, rectractable seat belt
    • Lighting: 2 headlights, 2 corner light, 4 front working light, 2 rear working light, 2 tail lights, 4 safety flashers
    Dimensions
    • Wheelbase: 95.9 in. (2435 mm)
    • Overall width: 83.7 in. (2125 mm)
    • Overall Length: 167.0 in. (4230 mm)
    • Overall height: 103.9 in. (2640 mm)
    • Crop Clearance: 22.0 in. (560 mm)
    • Tread width, front: 62.2-66.1 in. (1580-1680 mm)
    • Tread width, rear: 62.2-80.1 in. (1580-2030 mm)
    • Turning radius (w/o Brake): 12.5 ft. (3.8 m)
    • Weight (w/standard Tire): 8863 in. (4020 kg)
    • Standard front tire: 12.4 R24
    • Standard rear tire: 18.4 R30
    Standard Features
    • Heater/Air conditioner
    • Sun visor
    • Front Wiper/Washer
    • Rear wiper/Washer
    • Beverage Holder
    • 12v, 30 Amp electric outlet
    • Tinted glass
    • 2 external mirrors
    • 1 internal mirror
    • amber sport light
    • Interior light
    • Shuttle lever with tilt steering
    Optional Equipment
    • 80 in wide axle kit
    • 3-point lift assist cylinders
    • Front weights
    • Rear wheel weights
    • Drawbar clevis
    • Rear defogger
    • 3rd/4th remote valve
    • Creep speed
    • Flow control valve
    • Additional front work lights (2 lights on cab handle)
    • Fuel tank guard kit
    • Instructor Seat
    Front Loader LA1953
    • Maxium height to pivot pin: Height: 145.7 in. (3700 mm), Power: 132.7 in. (3370 mm)
    • Maximum lift height under lever bucket: Height: 136.3 in. (3470 mm), Power: 124.4 in. (3160 mm)
    • Clearance with bucket dumped: Height: 112.6 in. (2860 mm), Power: 98.0 in. (2490 mm)
    • Reach at maximum lift height (45 deg.): Height: 21.8 in. (553 mm), Power: 36.7 in. (932 mm)
    • Maximum dump angle: Height: 52 deg., Power: 63 deg.
    • Reach with bucket on ground: 87.8 in. (2230 mm)
    • Bucket roll-back angle: 40 deg.
    • Digging depth: Height: 2.4 in. (60 mm), Power: 2.6 in. (65 mm)
    • Overal height in carrying position: 66.9 in. (1700 mm)
    • Lift capacity to maximum height at pivot pin: Height: 4178 lbs. (1895 mm), Power: 4299 lbs. (1950 kg)
    • Lift capacity to maximum height (800mm forward): Height: 2668 lbs. (1210 mm), Power: 2976 lbs. (1350 kg)
    • Lift capacity to 1.5m (59 in.) height at pivot pin: Height: 4685 lbs. (2125 kg), Power: 5247 lbs. (2380 kg)
    • Lift capacity to 1.5m (59 in.) height (800mm forwar): Height: 3472 lbs. (1575 kg), Power: 4057 lbs. (1840 kg)
    • Breakout force at pivot pin: Height: 5589 lbs. (24860 N), Power: 6576 lbs. (29250 N)
    • Breakout force (800 mm forward): Height: 3864 lbs. (17190 N), Power: 4991 lbs. (22200 N)
    • Bucket rollback force at maximum height: Height: 3084 lbs. (13720 N), Power: 3615 lbs. (16080 N)
    • Bucket rollback force at 1.5m (59 in.) lift height: 5814 lbs. (25860 N)
    • Bucket rollback forace at ground level: 5802 lbs. (25810 N)
    • Raising time: 4.6 sec.
    • Lowering time: 3.3 sec.
    • Bucket dumping time: 2.1 sec.
    • Bucket rollback time: 2.5 sec.

    Specifications

    Engine
    Engine Manufacturer Kubota
    Engine Type Engine: V3800-TI-CRS; Type: Common Rail System, direct injection, liquid-cooled; No. of cylinders/Aspiration: 4/ Turbocharger with intercooler; Total displacement: 230 cu. in. (3769 cc)
    Horsepower 97.7 hp (72.9 kW)
    PTO HP 85.0 hp (63.4 kW)
    Rated RPM 2600 rpm
    Bore and Stroke 3.94 in. x 4.72 in. (100 mm x 120 mm)
    Specifications
    Wheelbase 95.9 in. (2435 mm)
    Height 103.9 in. (2640 mm)
    Width 83.7 in. (2125 mm)
    Weight 8863 in. (4020 kg)
    Ground Clearance 22.0 in. (560 mm)
    Tire Size Standard front tire: 12.4 R24; Standard rear tire: 18.4 R30
    General
    Fuel System Direct injection
    Fuel Capacity 50.2 gal. (190 l)
    Transmission No. of Speeds: Intelli-Shift transmission 16F/16R, Optional: 24F/24R w/creep; Main gear shift: 8-speed powershift; Range gear shift: 2-Speed mechanical shift with clutch button
    Brakes Hydraulically operated wet disc brakes, with automatic fron axle engagement (4WD)
    Hydraulics Pump output (hitch & remote): 18.1 gpm (68.4 l/min); Pump output (power steering): 17.2 gpm (65.1 l/min); 3-Point Hitch (Category II): Telescopic Lower link ends, telescopic stabilizers
    Drive Type Bevel gear type, on-the-go electro-hydraulic engagement, w/electro-hydraulic front differential lock

    Compare Models

    		 Print








    Year 2010
    Manufacturer Kubota
    Model M100X Mid-Size Utility Tractor
    Style Utility
    Engine
    Engine Manufacturer Kubota
    Engine Type Engine: V3800-TI-CRS; Type: Common Rail System, direct injection, liquid-cooled; No. of cylinders/Aspiration: 4/ Turbocharger with intercooler; Total displacement: 230 cu. in. (3769 cc)
    Horsepower 97.7 hp (72.9 kW)
    PTO HP 85.0 hp (63.4 kW)
    Rated RPM 2600 rpm
    Bore and Stroke 3.94 in. x 4.72 in. (100 mm x 120 mm)
    General
    Fuel System Direct injection
    Fuel Capacity 50.2 gal. (190 l)
    Transmission No. of Speeds: Intelli-Shift transmission 16F/16R, Optional: 24F/24R w/creep; Main gear shift: 8-speed powershift; Range gear shift: 2-Speed mechanical shift with clutch button
    Brakes Hydraulically operated wet disc brakes, with automatic fron axle engagement (4WD)
    Hydraulics Pump output (hitch & remote): 18.1 gpm (68.4 l/min); Pump output (power steering): 17.2 gpm (65.1 l/min); 3-Point Hitch (Category II): Telescopic Lower link ends, telescopic stabilizers
    Drive Type Bevel gear type, on-the-go electro-hydraulic engagement, w/electro-hydraulic front differential lock
    Specifications
    Wheelbase 95.9 in. (2435 mm)
    Height 103.9 in. (2640 mm)
    Width 83.7 in. (2125 mm)
    Weight 8863 in. (4020 kg)
    Ground Clearance 22.0 in. (560 mm)
    Tire Size Standard front tire: 12.4 R24; Standard rear tire: 18.4 R30
