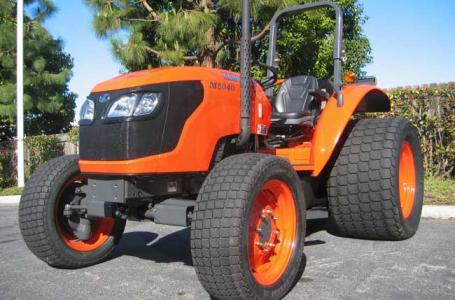

2010 Kubota M6040 Deluxe Utility Tractor
Request a Quote Financing Calculator Request a Brochure Financing Form
Click here to view full image.
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

    Engine
    • Model: KUBOTA-V3307-DI
    • Type (Make: KUBOTA): 4-cylinder in-line direct injected
    • SAE Net Power: 62.0 HP (46.3 kW)
    • PTO horsepower: 55.0 HP (41.0 kW)
    • Total Displacement: 203 cu. in. (3331cc)
    • Bore X Stroke: 3.70 in. X 4.70 in. (94 X 120mm)
    • Rated speed: 2,600 rpm
    • Fuel tank capacity: 18.5 gal. (70 l) ROPS Models / 29.1 gal. (110 l) CAB Models
    • Alternator/Battery: 45 Amps / 12V 900 CCA ROPS Models; 60 Amps / 12V 900 CCA ROPS Models
    • Air cleaner: 8 in. dry, dual element
    • Muffler / Exhaust Pipe: Left side of hood vertical / Underhood muffler ROPS Models
    Transmission
    • No. of speeds (Option): Cassette Type creep speed 12F X 12R
    • Main gear shift: 4-speed main transmission, synchronized shift
    • Range gear shift: 2-speed High / Low Constant Mesh
    • Shuttle shift: Synchro-Shuttle standard 2wd & 4wd models; Hydraulic-Shuttle Optional on CAB Models
    • Creep Speed (Cassette type, optional): 0.21, 0.30, 0.40, 0.65 mph
    • Max. travel speed: 18 mph
    • Main clutch type/diameter: Synchro Shuttle, cerametallic button dry clutch 10.8 in. (275mm); Hydraulic Shuttle, Multi-Plate wet disc clutch 6 disks, 4.9 in. (125mm)
    • Brake type: Mechanically operated wet disc brakes
    • Front wheel drive system: Bevel gear type, with Easy-To-Shift 4wd engagement whiling rolling
    PTO System
    • PTO type: Live-Independent PTO, Hydraulically operated wet clutch, w/PTO brake
    • PTO Speed: 540 rpm (6 splines) standard
    Hydraulics
    • Pump flow (Hitch & remotes): 11.0 gpm (41.6 l/min)
    • Pump flow (Power steering): 6.1 gpm (23.0 l/min)
    • 3-point hitch (Category II): Telescopic lower link ends, Telescopic stabilizers
    • Control system: Mechanical position and mixed draft control, Top link draft sensing
    • Lift capacity 24 in. behind lift point: Standard 3,307 lbs. (1,500 kg)
    • Remote valves: 1 standard (2nd or 3rd. Optional)
    • Steering: Hydrostatic power steering
    Cab
    • Operator area: ISO-mounted flat deck, Hanging Pedals, Tilt steering wheel
    • Seat: Reclining, fully adjustable; height, weight, fore & aft., arm rests, with retractable seat belt
    • Lighting: ROPS: 2 headlights, 2 corner lights, 2 tail lights, 2 frt. and 4 rear safety flashers; CAB: 2 headlights, 2 corner lights, 2 tail lights, 2 frt. and 4 rear safety flashers; 2 front worklights, 2 rear work lights.
    • Standard Cab Features: Ultra Grand Cab has an arched Beam roof line, Heater/Air conditioner, Sun visor, Front wiper/washer, Beverage holder, 12V/30 amp 3Pin Electric outlet, Tinted glass, 2 external mirrors, 3-Position switch for Interior light 7-pin Trailer electric outlet, Optional Air Ride seat suspension.
    Dimensions & Weight
    • Wheelbase: 2wd Models: ROPS 82.1 in.(2085mm) Cab 84.4 in. (2145mm); 4wd Models: ROPS 80.7 in. (2250mm) Cab 83.1 in. (2110mm)
    • Overall width (minimum): 73.2 in. (1860mm)
    • Overall length: 2wd 140.4 in. (3565mm) / 4wd 135.6 in. (3445mm)
    • Overall height ROPS/CAB: 96.9 in. (2460mm) / 99.8 in. (2535mm)
    • Crop clearance: 16.5 in. (420mm)
    • Front 2 WD Tread width: 56.7 in. - 72.4 in. (1440 - 1840mm)
    • Front 4 WD Tread width: 52.4 in. - 56.3 in. (1330 - 1430mm)
    • Rear Tread width: 55.9 in. - 67.7 in. (1420 - 1720mm)
    • Turning radius (w/o brake): 2 WD: 11.2 ft. (3.3m); 4 WD: 11.8 ft. (3.6m)
    • Weight (w/Standard tire/Steel dish): 3,858 lbs. (1,750 kg) / 4,079 lbs. (1,850 kg)
    • 2 WD Standard front tire: 7.50-16
    • 4 WD Standard front tire: 12.4-24
    • Standard rear tire: 16.9-28
    Other Optional Equipment
    • Front weight bumper (std 2wd) Front weights
    • Rear wheel weights
    • Drawbar clevis (hammerstrap)
    • 2nd and 3rd remote valves,
    • Cassette type Creep speed,
    • Rear axle spacer kit
    • Cab Radio cassette or CD Player with 7-Channel weather band
    • Grill Guard
    • Down Exhaust
    • Deluxe canopy for ROPS Models.
    Optional M4011 Backhoe (Available on ROPS Model Tractors Only)
    • Performance matched to M-Series Utility Tractors
    • Quick attach convenience combined with full mount subframe insures durability
    • Two-lever control for smooth and fast operation. One lever controls boom extension and retraction as well as swing arc. The second lever operates the dipperstick extension and retraction, and bucket curl.
    • Transport lock of boom swing and boom for safe transporting is operated from backhoe seat
    • Applicable Kubota front loader is required
    • Operates from the tractor hydraulic system
    • Hydraulically actuated stabilizers provide good stability and are equipped with flip type grousers
    • Bracket for optional thumb is standard equipment
    • Subframe compatible with tractor three-point hitch when backhoe is removed
    • Buckets are 3-hole type for increased digging force and curl opening
    • Buckets are severe duty type
    • Replaceable Bushings - Boom and Dipper
    • Deluxe seat provides enhanced operator comfort
    • Swing speed control is standard
    • Two cylinder trunion type boom swing provides 180 degrees of swing arc
    • Boom swing cylinders include cushion relief for smooth stopping
    Optional M4011 Backhoe Optional Features
    • Optional auxilary hydraulics to power optional thumb
    • Optional mechanical thumb
    Optional M4011 Backhoe Attachments
    • Variety of bucket width options include 12 in., 16 in., 18 in., 24 in. , 36 in. and 38 in. buckets
    • Rubber pads to attach to flip grousers for hard surface operation
    • Bucket quick-coupler
    • Stabilizer cylinder guards
    Optional LA1153 Front Loader
    • Joystick Control
    • Two Position Boom Cylinders
    • Protected Cylinder Tubes
    • Roundback Bucket
    • Single Piece, Cast Steel Main Frames
    • Quick-Mount Attach/Detach
    • Skid Steer-Type Quick Coupler
    • 4-Bar Linkage
    Optional LA1153 Front Loader Optional Features
    • Kubota Shockless Ride (KSR)
    • Single-Lever Hydraulic Quick Coupler
    • 3rd Function Valve
    • Hydraulic Self-Leveling Valve
    Other Optional Implements
    • Land Pride Box Scraper
    • Land Pride Broadcast Spreader
    • Land Pride Core Aerator
    • Land Pride Disc Harrow
    • Land Pride Flail Mower
    • Land Pride Flex Mower
    • Land Pride Grooming Mower
    • Land Pride Landscape Rake
    • Land Pride Post Hole Digger
    • Land Pride Powered Rake
    • Land Pride Quick Hitch
    • Land Pride Rear Blade
    • Land Pride Rotary Cutter
    • Land Pride Rotary Tiller
    • Land Pride Soil Pulverizers
    • Land Pride Straw Crimper

    Specifications

    Engine
    Engine Type 4-cylinder in-line direct injected
    Horsepower 62.0 HP (46.3 kW)
    PTO HP 55.0 HP (41.0 kW)
    Rated RPM 2,600 rpm
    Bore and Stroke 3.70 in. X 4.70 in. (94 X 120mm)
    Specifications
    Wheelbase 2wd Models: ROPS 82.1 in. (2085mm) Cab 84.4 in. (2145mm); 4wd Models: ROPS 80.7 in. (2250mm) Cab 83.1 in. (2110mm)
    Height ROPS: 96.9 in. (2460mm); CAB: 99.8 in. (2535mm)
    Width 73.2 in. (1860mm)
    Weight W/Standard Tire: 3,858 lbs. (1,750 kg); W/Steel dish: 4,079 lbs. (1,850 kg)
    Ground Clearance 16.5 in. (420mm)
    Tire Size 2 WD Front: 7.50-16; 4 WD Front: 12.4-24; Rear: 16.9-28
    General
    Fuel System Diesel
    Fuel Capacity 18.5 gal. (70 l) ROPS Models / 29.1 gal. (110 l) CAB Models
    Transmission Cassette Type creep speed 12F X 12R
    Brakes Mechanically operated wet disc brakes
    Hydraulics Pump flow (Hitch & remotes): 11.0 gpm (41.6 l/min); Pump flow (Power steering): 6.1 gpm (23.0 l/min)

    Compare Models

    		 Print








    Year 2010
    Manufacturer Kubota
    Model M6040 Deluxe Utility Tractor
    Style Utility
    Engine
    Engine Manufacturer
    Engine Type 4-cylinder in-line direct injected
    Horsepower 62.0 HP (46.3 kW)
    PTO HP 55.0 HP (41.0 kW)
    Rated RPM 2,600 rpm
    Bore and Stroke 3.70 in. X 4.70 in. (94 X 120mm)
    General
    Fuel System Diesel
    Fuel Capacity 18.5 gal. (70 l) ROPS Models / 29.1 gal. (110 l) CAB Models
    Transmission Cassette Type creep speed 12F X 12R
    Brakes Mechanically operated wet disc brakes
    Hydraulics Pump flow (Hitch & remotes): 11.0 gpm (41.6 l/min); Pump flow (Power steering): 6.1 gpm (23.0 l/min)
    Drive Type
    Specifications
    Wheelbase 2wd Models: ROPS 82.1 in. (2085mm) Cab 84.4 in. (2145mm); 4wd Models: ROPS 80.7 in. (2250mm) Cab 83.1 in. (2110mm)
    Height ROPS: 96.9 in. (2460mm); CAB: 99.8 in. (2535mm)
    Width 73.2 in. (1860mm)
    Weight W/Standard Tire: 3,858 lbs. (1,750 kg); W/Steel dish: 4,079 lbs. (1,850 kg)
    Ground Clearance 16.5 in. (420mm)
    Tire Size 2 WD Front: 7.50-16; 4 WD Front: 12.4-24; Rear: 16.9-28
